Add Motor Details
When adding a new motor with the mobile app, where can I find the information about the parameters of the motor? Are all these parameters indicated on the motor nameplate?
Yes, the main information requested to fill on the mobile app about the motor are indicated on the motor nameplate.
| IEC Frame | NEMA Frame |
| 63 | 42 |
| 71 | 48 |
| 80 | 56 56H |
| 90S | 143T 145T |
| 90L | 182 184 182T 184T |
| 100 | 213 215 213T 215T |
| 112 | 254U 256U 254T 256T |
| 132 | 284U 286U 284T 286T 284TS 286TS |
| 160 | 324U 326U 324T 326T 324TS 326TS |
| 180 | 364U 365U 364T 365T 364TS 365TS |
| 200 | 404U 405U 404T 405T 404TS 405TS |
| 225 S | 444U 445U 444T 445T 447T 449T 444TS 445TS 447TS 449TS |
| 225 M | |
| 250 S | |
| 250 M | |
| 280 S | |
| 280 M | |
| 315 S, 2p | |
| 315 S, 4p-8p |
|
| 315 M, 2p | |
| 315 M, 4-8p |
|
| 355 S, 2p | |
| 355 S, 4-8p |
|
| 355 M, 2p | |
| 355 M, 4-8p |
|
| 355 L, 2p | |
| 355 L, 4-8p |
Modify Motor Details
If a motor parameter (like rated current) is not indicated on the list by default, how can I enter it (or modify a wrong information)?

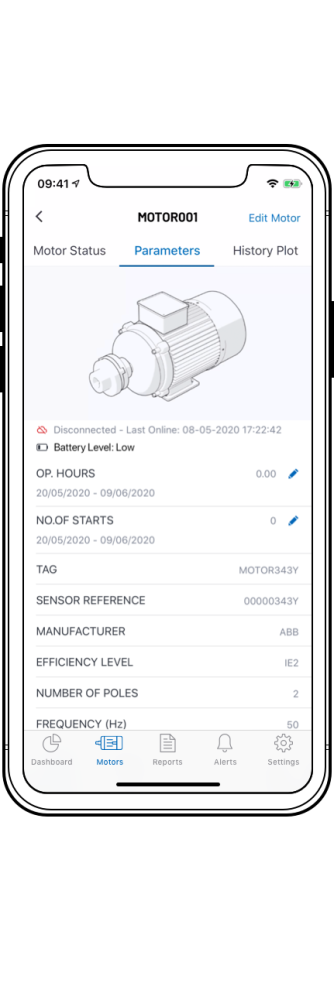

You can edit the motor details by selecting a motor in the mobile app: you will land on the Motor Status tab. Tap Edit motor at the top right corner: you will be able to add any missing parameter and confirm your changes.
